Description

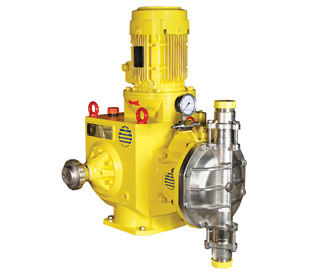

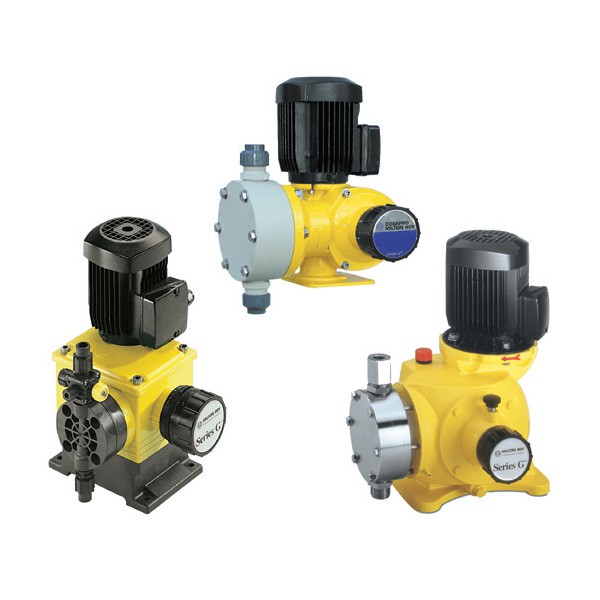

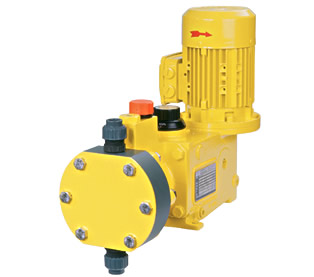

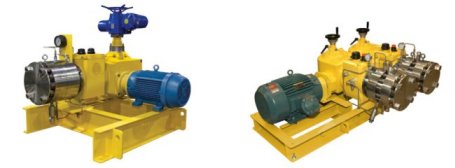

Model table of mitron GB series mechanical diaphragm pump:
| Model | Flow （l/h） | Pressure （bar） | Motor power | Pump head |
| GB0080 | 82 | 10 | 0.55KW/0.75KW | PVC /PVDF /316Stainless steel |
| GB0180 | 167 | 10 | ||
| GB0250 | 237 | 10 | ||
| GB0350 | 334 | 10 | ||
| GB0450 | 416 | 10 | ||
| GB0500 | 464 | 7 | ||
| GB0600 | 583 | 7 | ||
| GB0700 | 656 | 3.5 | ||
| GB1000 | 946 | 3.5 | ||
| GB1200 | 1200 | 3.5 | 0.75KW | |
| GB1500 | 1500 | 3 | ||
| GB1800 | 1800 | 3 |
Main performance parameters
• maximum flow per head: 1800L/H
• maximum discharge pressure: 12bar
• adjustment ratio 10:1, steady-state accuracy 2%
• suction lifting height up to 3m water column
• maximum inlet pressure is 2bar
• allow material maximum temperature of 40 ℃
The main characteristics
The hydraulic end
• mechanically driven diaphragm, no diaphragm guard plate on the material side to facilitate the passage of materials
• PVC, PVDF, 316SS, high viscosity, slurry, etc.
Suitable for all kinds of materials
• self-cleaning one-way valve structure
Drive end
• adjustable eccentric mechanism to ensure smooth change of flow pulsation
• enhanced structural design for harsh operating environments
• wear-resistant ball bearing for more stable operation
• oil bath lubrication, long working life of driving parts
• the flow can be adjusted when the machine is stopped or running
Type can be player moving, electric or frequency conversion
The control mode
Electric stroke controller: accept the external control signal, adjust the stroke length
• power supply: 220v-50hz – single phase
• input signal: 4-20ma analog signal
• output signal: 4-20ma / 1-5v analog signal for recording display and control system
Frequency conversion controller: accept the external control signal, adjust the stroke speed
• power supply: 220v-50hz – single-phase / 380v-50hz – three-phase
• input signal: 4-20ma analog signal
