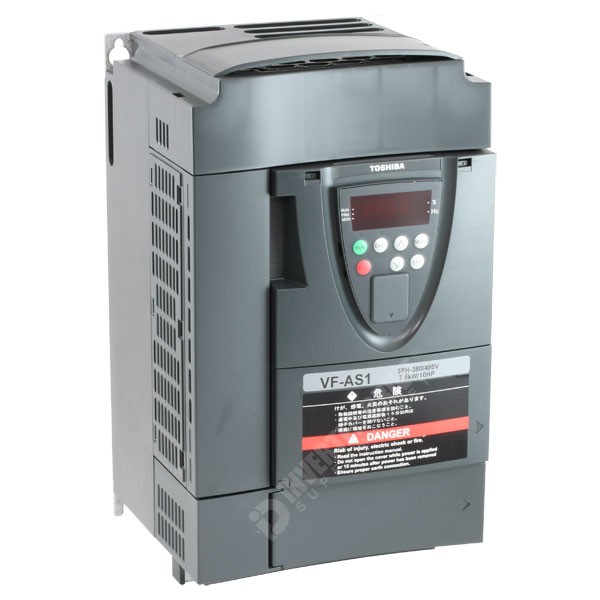

TOSHIBA AS1 Series

The AS1 series adjustable speed drive adds to the strong record Toshiba holds in creating adaptable, consistent, and powerful drives. Manufactured for functionality for the end user, the AS1 uses advanced technology to provide a powerful, reliable, and rugged drive with flexible application control.

Highlights

100% Continuous Overload Rating, 150% for 60 Seconds
Eight Programmable Discrete Inputs with Selectable Sink or Source Logic
Three Programmable Discrete Outputs: One Form-C Contact and Two Open Collector Outputs
Three Programmable Analog Inputs: One 4 to 20 mA, One 0 to 10 VDC Input, and One ¤10 VDC Input
Two Programmable Analog Outputs: One 4 to 20 mA or 0 to 10 VDC and One 0 to 1 mA Output or 0 to 7.5 VDC
Two-Wire/Four-Wire RS485
Auto-Restart Operation/Catch a Spinning Motor
Improved PID Algorithms
Built-In EMC Filter

Standard Features

NEMA 1 Enclosure with Additional Conduit Adapter
Built-In Dynamic Breaking Drive Circuit up to 250 HP2
Past Trip Monitoring: Stores the Last Four Faults in Succession, Along with Cumulative At-Trip Times
EOI: Integral Seven-Segment LED Keypad
Save, Restore, and Clone Multiple Drive Settings
Ambient Temperature: 14° to 122°F (-10° to 50°C)
Altitude: Up to 1000 Meters without Derate
Humidity: 95% Non-Condensing
Standards/Compliance: IEEE, UL Listed in US and Canada, CSA, NEMA, NEC, CE, NOM-117, C-TICK, and GOST

Description

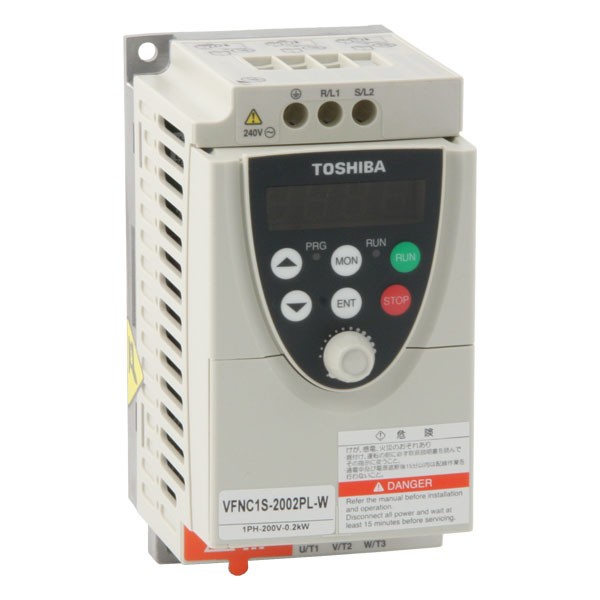

Toshiba VF-nC1 Nano – 2.2kW 230V 1ph to 3ph – AC Inverter Drive Speed Controller

This product is no longer in production. For a possible replacement see linked products below.

Toshiba Tosvert VFnC1 Inverter for 2.2kW (3HP) 230V 3 Ph motor in VxF control to 10A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.

Size – 117mm Wide x 155mm Deep x 142mm high in IP20 case.

Overload – 150% x 60seconds.
Speed Control Range – 0/200Hz.
Braking – none.

Features – Front Mounted Potentiometer, 1 x Analogue Input, 1 x Analogue Output, 4 Digital Inputs, 1 Relay Contact set.
Programmable from built-in keypad.
EMC Filters to EN61800-3 to the 2nd Environment C3 (Industrial).

Input Current – Not Specified (30A circuit breaker).
Input Voltage – 200/240V single phase +-10% at 50/60Hz.

Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below – 50mm.
Ventilation space at sides – 50mm.
Heat Loss at max output – 126W.
Mounting onto screw fixings for rear mounting.

Full part number is – VFNC1S-2022PL-W

Download the Toshiba VFNc1 Manual from the link below:-

Toshiba VF-nC1 Manual (3.1 MB)

VFAS12015PLHN

Technical Specifications

Brand	TOSHIBA
Horsepower Rating	2 HP
Rated Voltage	230 V
Series	AS1
Output Voltage	230 V
Product Condition	New
Enclosure Rating	UL Type 1
Output Amperage Rating	8 A
Phase Rating	3 Phase Input – 3 Phase Output
Rated Amps	8 A
Model	VFAS12015PLHN
HP Rating @ 100% OL	2 HP
Amp Rating @ 100% OL	8 A

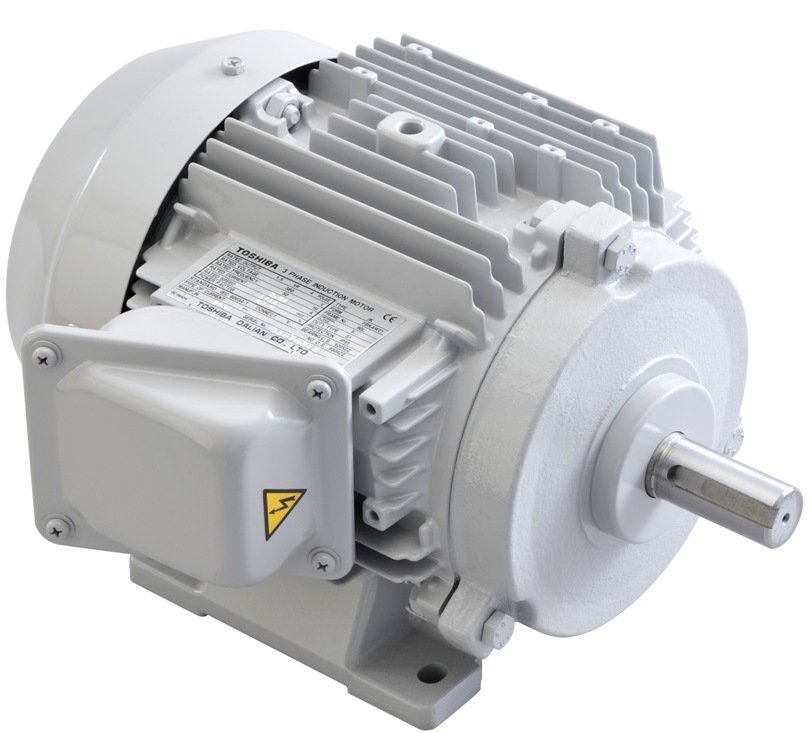

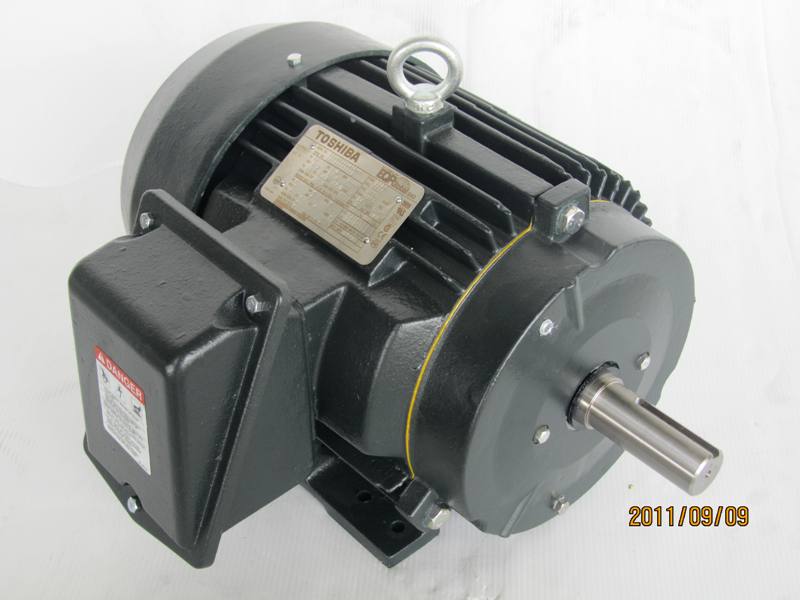

4 ratings (200V-50Hz, 200/220/230V-60Hz) are available as standard; 3 ratings for Japan (200V-50Hz, 200/220V-60Hz), 230V-60Hz for US. 230V-60Hz for US complies with Energy Independence and Security Act (EISA) and is certified by Conformity Certification No. (CC No.).
*Not satisfy UL standard.
