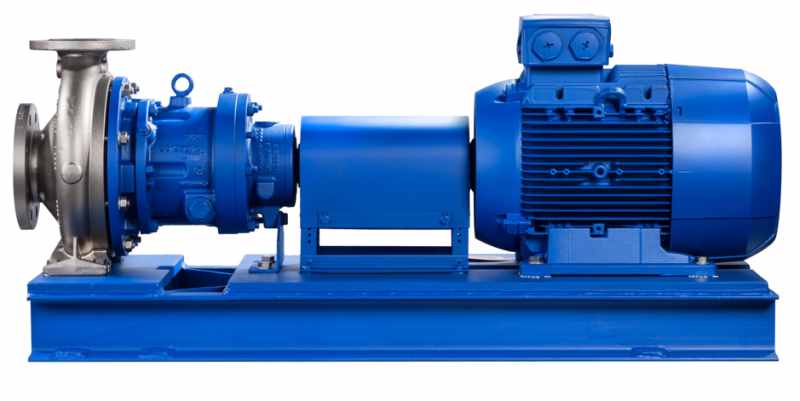

Etanorm SYT

Characteristic-Curves-Etanorm-1450

Characteristic-Curves-Etanorm-2900

Overview of technical data
Q (50Hz) : 1.5 – 740.0 (m³/h)

H (50Hz) : 2.0 – 160.0 (m)

Type of bearing : Ball bearings

Casing partition : Radially split

Drive frequency : 50 Hz /60 Hz

Type of drive : Electric motor

Drive voltage : Low voltage

Explosion protection : IP 55

No. of impeller entries : Single entry

Impeller material (EN standard) : 1.4408 / A743 GR CF8 M, CC480K-GS / B30 C90700, JL1040 / A 48 CL 35B

Type of installation : Long-coupled

Type of coupling : Direct

Type of lubrication : Grease / Oil lubrication

Max. permissible fluid temperature : 140.0 (°C)

Guaranteed to be silicon-free : Yes

Nozzle position : End suction

Maximum operating pressure : PN 16

Pull-out design : Yes

Pump set location : Dry installed

Shaft material (EN standard) : 1.4571, C45+N

Standard : EN, EN / ANSI

Suction characteristics : Non-priming

Suitable for drinking water : Yes

Type of casing : Volute casing

Type of impeller : Closed / Radial

Type of connection : Flange

UNSPSC classification : 4015150300

Casing material (EN standard) : 1.4408 / A743 GR CF8 M, CC480K-GS / B30 C90700, JL1040 / A48CL35B, JS1030 / A536 GR 60-40-18

E’class assignment : 36410000, 36410100, 36410101

Installation position : Horizontal

Shaft seal type : Mechanical seal, Gland packing

Main applications : Industry and process engineering, Water, Energy, Building services

Casing material : Cast iron, Stainless steel, Nodular cast iron, Bronze

Maximum discharge-side pressure : 16.0 (bar)

Type of installation : Stationary

Maximum speed of rotation : 3500.0 (1/min)
